poi

poi is a web app that visualizes cycling-related points of interest on a map. The data is sourced using OpenStreetMap's Overpass API and includes locations of gas stations, supermarkets, cafes and even cemeteries for emergency water refills. It can also display GPX files to assist with planning.

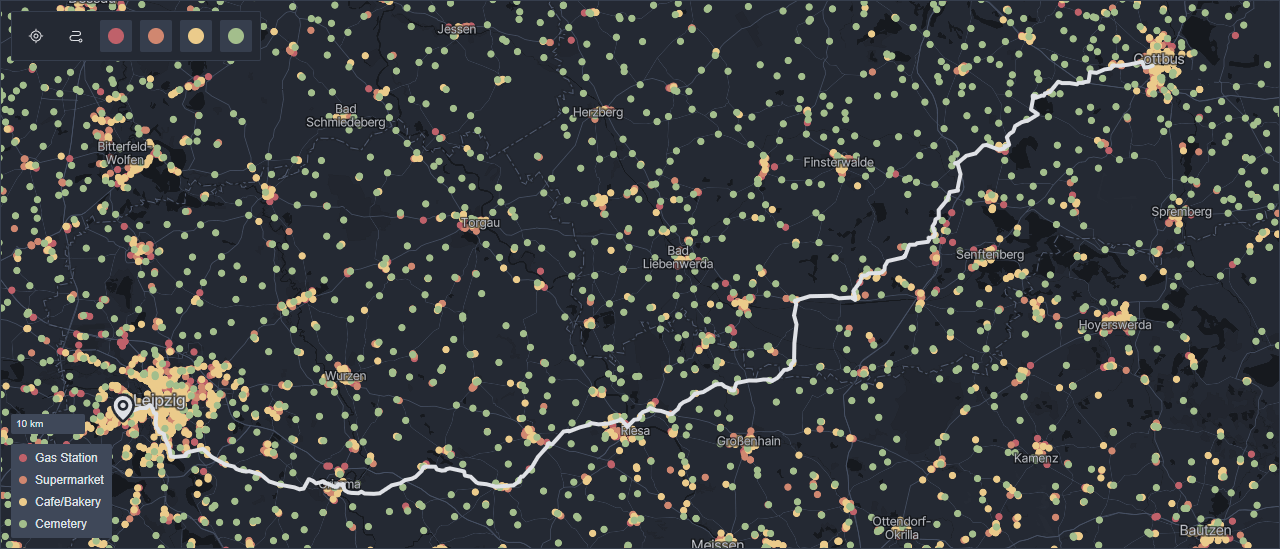

Route from Leipzig to Cottbus
Route from Leipzig to Cottbus

workin

workin is a web app for creating and running smart trainer workouts. It uses the Web Bluetooth API to communicate with heart rate monitors and smart trainers that implement the Fitness Machine Service protocol. It offers the main features of paid alternatives, has a wide range of standard workouts and allows easy creation of custom workouts.

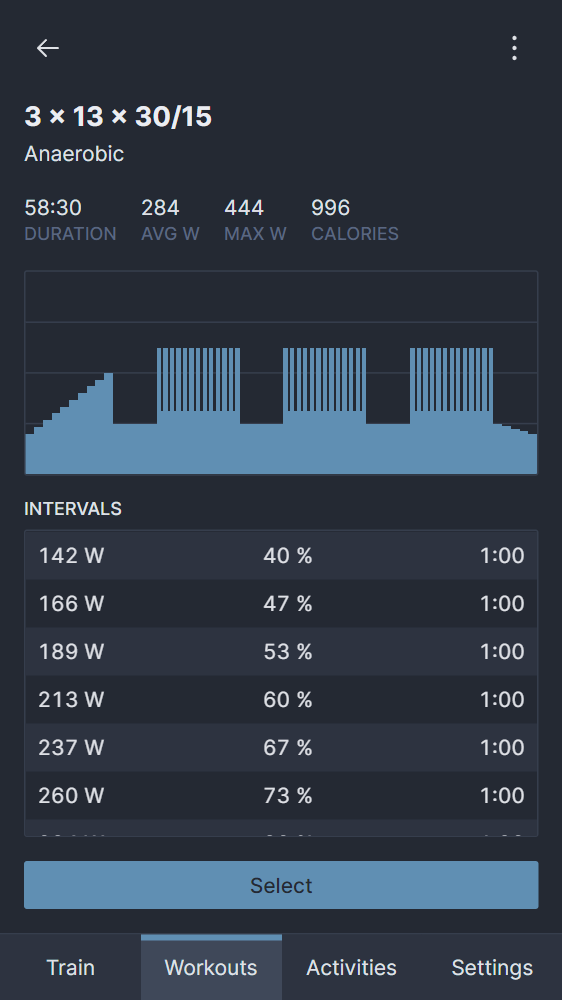

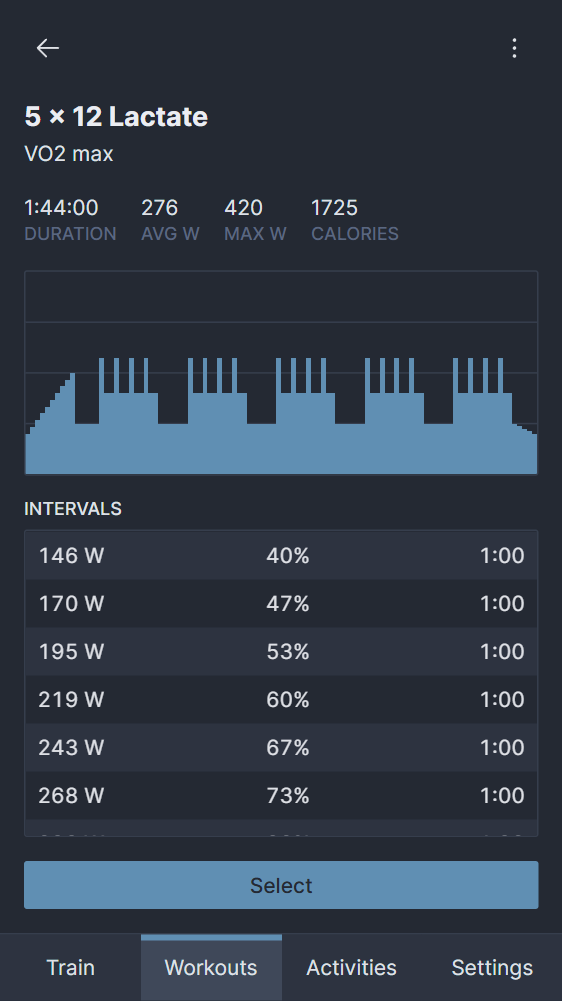

  • Workout view
    Workout view

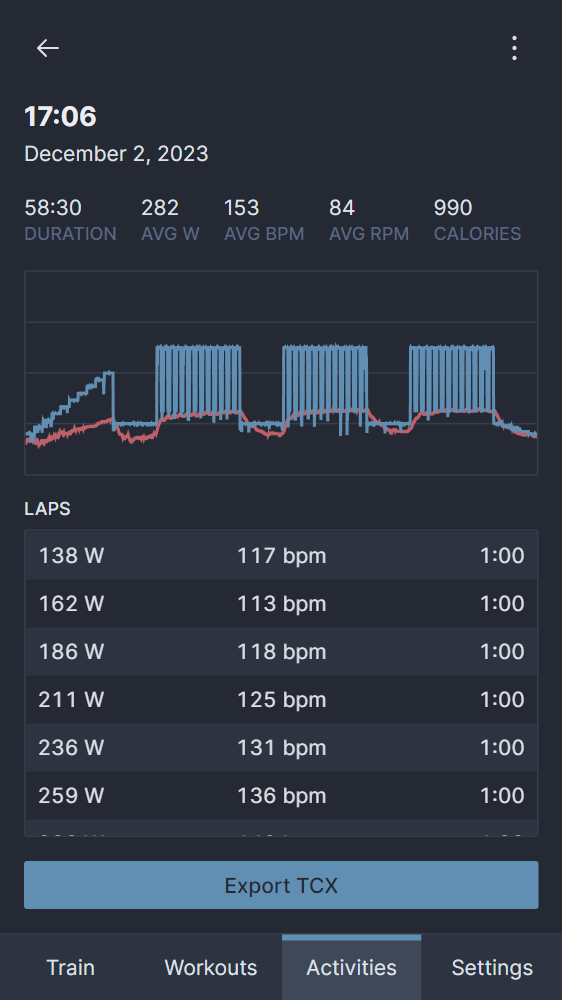

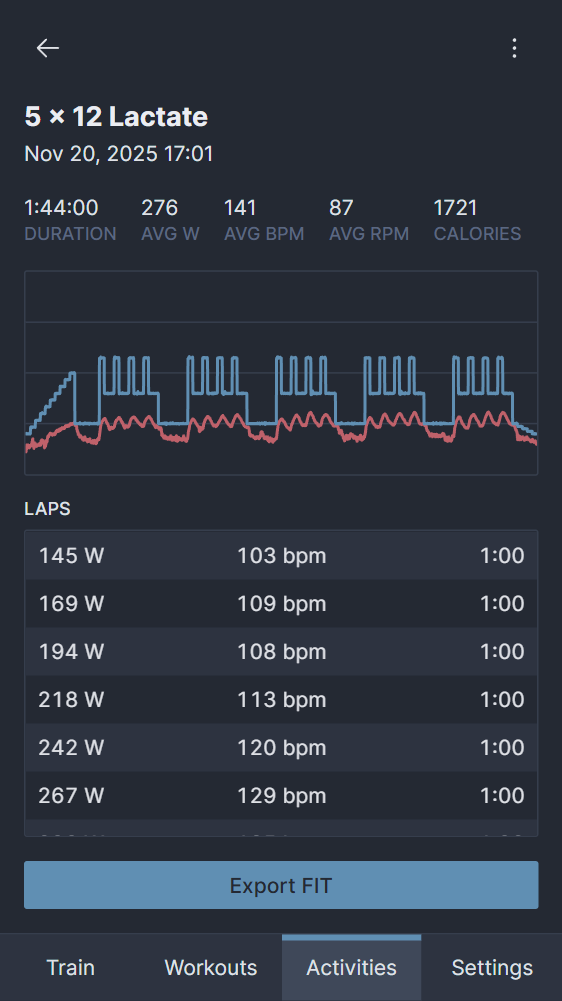

  • Activity view
    Activity view

sprite

sprite is a Game Boy emulator written in drizzle and serves as the ultimate stress test for the programming language. It implements most components of the system with reasonable accuracy, but there is no sound or saves, and the cartridge types are limited to MBC0, MBC1 and MBC3.

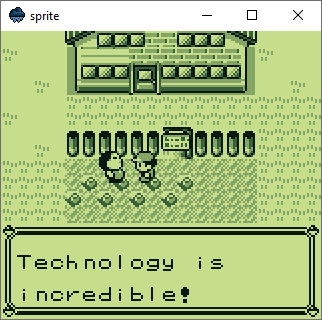

  • Technology is incredible guy
    Technology is incredible guy

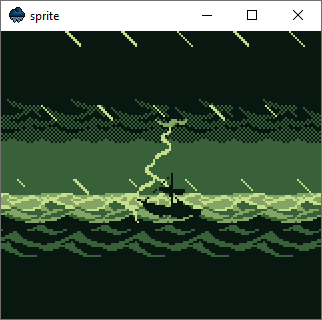

  • Zelda intro sequence
    Zelda intro sequence

The initial implementation didn't even manage to emulate the console at half speed. Optimizations, like using a specializing adaptive interpreter in drizzle and replacing the class with free functions and variables in sprite, increased the performance to 125%, which resulted in a stable frame rate at native speed.

drizzle

drizzle is a dynamically interpreted programming language with a syntax similar to Python.

class Point:
  def init(x, y):
    this.x = x
    this.y = y
  def cross(other):
    return this.x * other.y - this.y * other.x

# Stokes' theorem
def area(polygon):
  var s = 0
  for i in 0 .. len(polygon):
    s = s + polygon[i - 1].cross(polygon[i])
  return s / 2

var triangle = [Point(0, 0), Point(4, 4), Point(0, 4)]

assert(area(triangle) == 8.0)

It started as an exercise for language design and whitespace-aware parsing and grew into something powerful enough to run a Game Boy emulator. It provides simple SDL2 and filesystem abstractions to achieve that. The latest version also features a specializing adaptive interpreter to squeeze out the last bit of performance.

  • Icon of drizzle rendered with SDL2
    Icon of drizzle rendered with SDL2
  • Icon of eggvance rendered with SDL2
    Icon of eggvance rendered with SDL2

eggvance

eggvance is a fast and accurate Game Boy Advance emulator. The processor grew instruction by instruction in conjunction with its test suite to ensure a solid implementation with all edge cases covered.

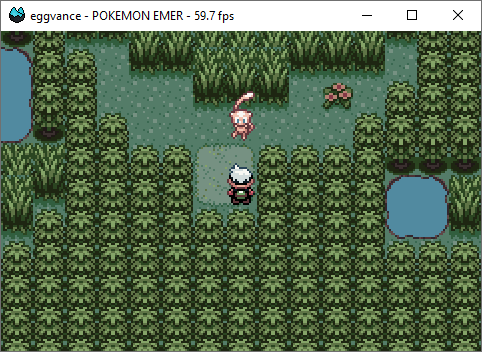

  • Mew on Faraway Island
    Mew on Faraway Island

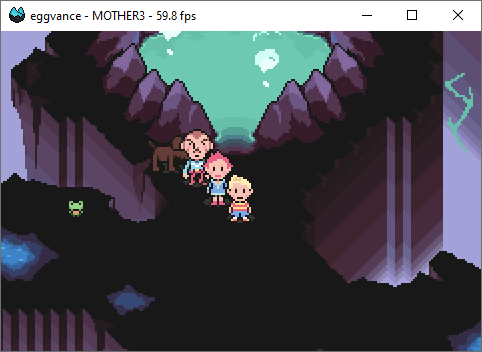

  • Final moments of Mother 3
    Final moments of Mother 3

Other components of the system soon followed, and the emulator got to a stage where it was able to run most games and demos you threw at it. Around that time, I spent a weekend porting it to WebAssembly. Audio emulation was something I had been putting off until the end due to my lack of experience, but I managed to do it eventually.

Pokémon Emerald battle frontier theme

The final year of development went into performance and accuracy improvements. I released version 1.0 around 2.5 years after the initial commit and wrote a couple of progress reports along the way.

maze

maze was my introductory project to programming and the thing I tinkered with during boring lectures. It creates and solves perfect mazes using different algorithms, each with its own recognizable style. I also implemented the recursive backtracking algorithm in C, which sparked my interest in high-performance code.

  • Maze created using recursive backtracking
    Maze created using recursive backtracking
  • Maze solved using depth-first search
    Maze solved using depth-first search

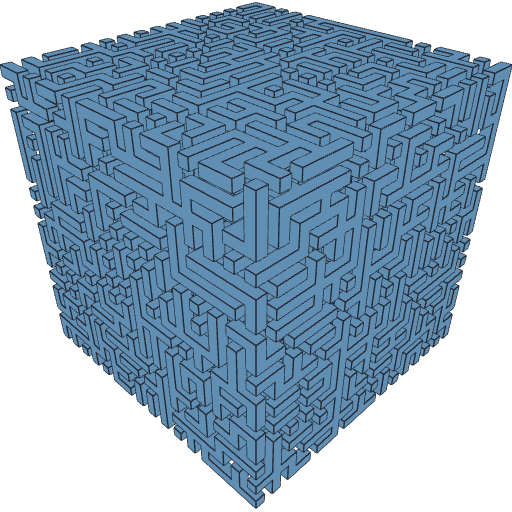

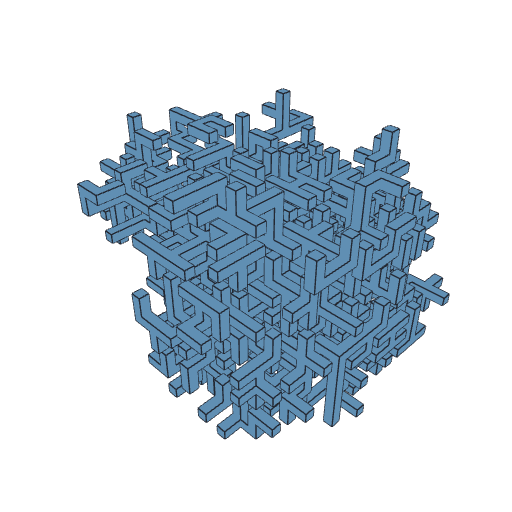

I revisited the topic a couple of years later and expanded it into the third dimension. hypermaze runs in the browser and supports multiple algorithms featured in the original.
